Capabilities

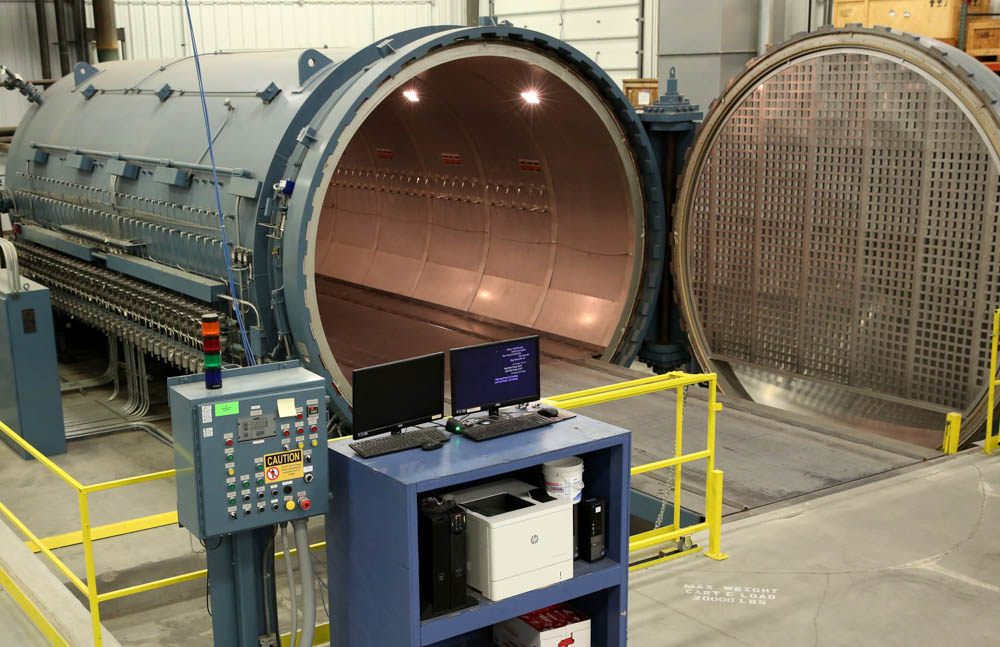

Autoclave

6 Autoclaves

  • 12' x 30'
  • 8' x 16'
  • 5' x 10' (2)
  • 3' x 6' (2)

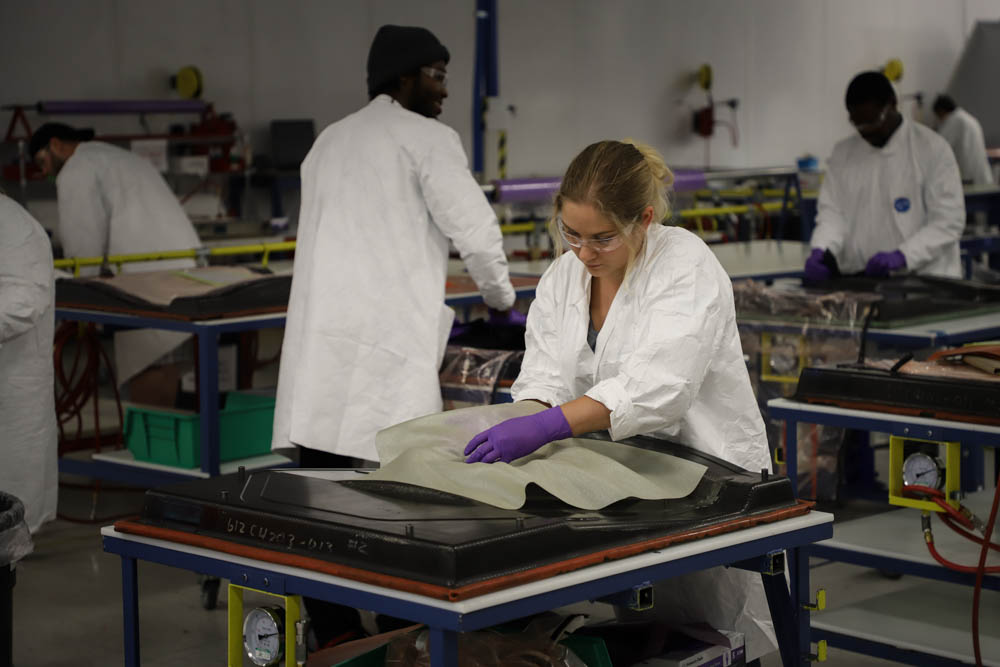

Clean Rooms

  • 16,000 ft² (1,486 m²) clean room space.
  • Temperature and humidity controlled
  • 3 separated clean rooms spaces:
    • Radomes
    • Ducting
    • Structural

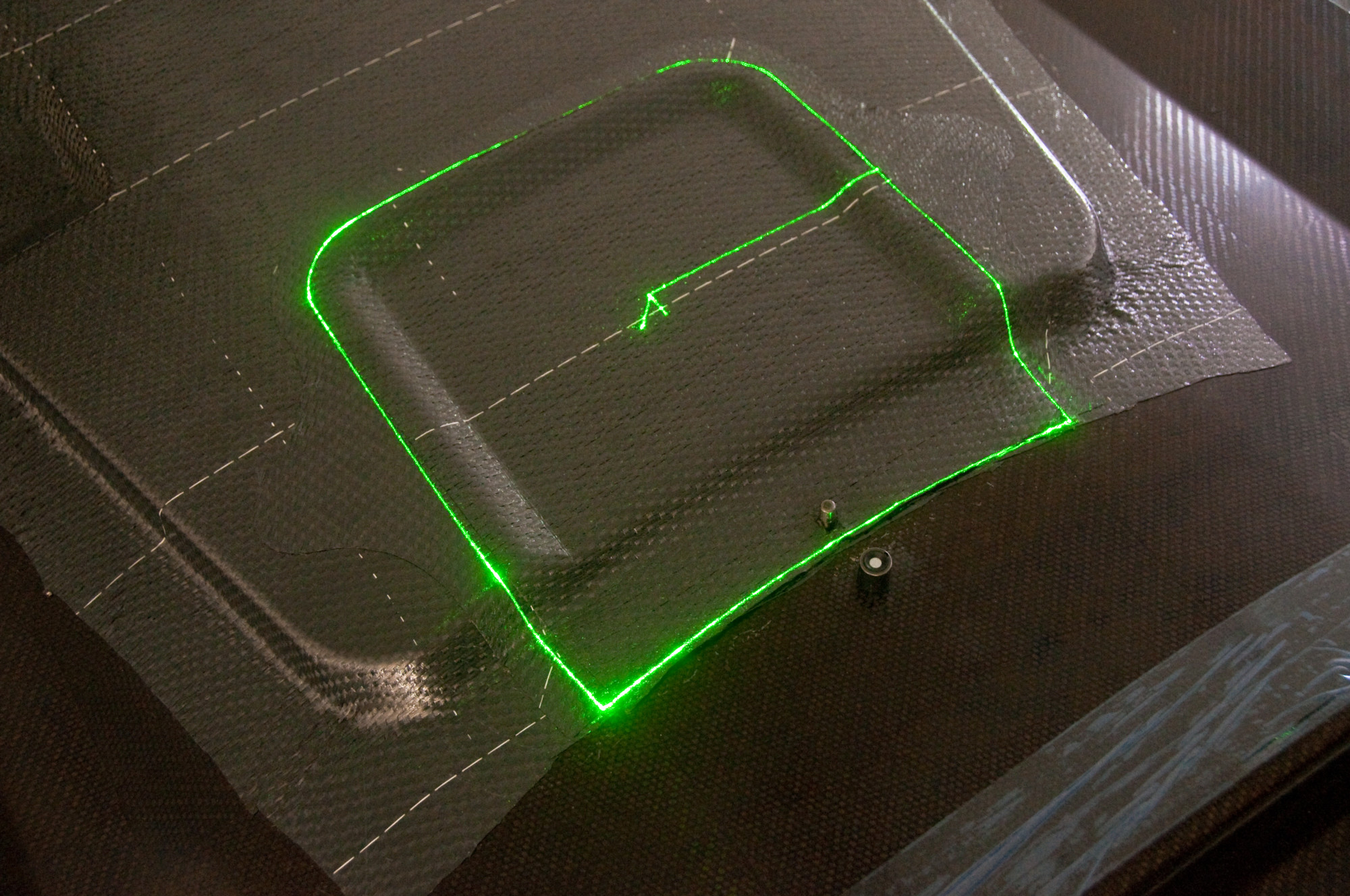

Laser Projections

  • 8 Virtek Laser ply projectors
  • Capability for multitasking
  • Precision positioning and repeatability.



Machine Operations

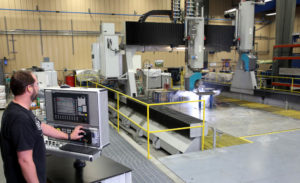

  • Composite Machining Center:
    • Nominal envelope size: X=6.5m Y=2.5m Z=1m
    • 5-axis abrasive waterjet
    • 5-axis high-speed router
  • 8 additional CNC mills (3,4 & 5 axis)

Non-Destructive Testing (NDI)

A-SCAN, C-SCAn and phased array ultrasonic testing
  • Level II and Level III inspectors on site.
  • GE Inspection Technologies USN 60 A-Scan flaw detectors.

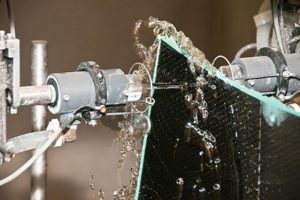

  • The C-Scan is used on sandwich structures. Our Structural Diagnostics, Inc. SDI 5180 currently operates in a 42" x 96" immersion tank, fitted out with two squirter heads.
  • Having NDI availability on 3 shifts allows Royal to keep components moving through inspection and assists in on-time performance.

Assembly

post processing capabilities
  • Prime, paint, rain erosion, conductive coatings
  • Lightning diverters, machined hardware, quick change fasteners
  • Precision installation mount points
  • Specialty packaging, buffer stock
